Brief introduction

This machine is customized by our client, which is a 5 in 1 monobloc, three rinsers one filler and one capper. It's suitable to produce alcoholic beverage, wine, juice, nectar, tea drink, dairy drink, soybean milk and other non-gas beverage.

Machine Character

• Features:

  1, The automatic alcohol filling machine using high-strength stainless steel bottles of spring-loaded folders, to ensure a stable reversal of the glass bottles. The nozzle is a plum-like structure can wash every corner of the sidewall and bottom to make the bottle clean.




  2, Automatic alcohol filling machine with spring-type mechanical lifting equipment to upgrade glass bottles, large bearing support floundering in the vat and use of guide-rod in the orientation of the structure, there are pre-cover features.




  3, Using high-precision mechanical filling valve, with cylinder liquid level and the back pressure controlled by a variable signal proportional. Fast, stable, accurate, to be vacuum one at a time.




  4, Stainless steel plunger and mechanical stirring gland-type magnetic reasonable cap to ensure that the gland is healthy and reliable. Hopper and the cap taking- cover, capping transmitted by magnetic. The capping is reliable and automatic unloading, reducing the rate of broken bottles.




  5, The automatic alcohol filling machine includes broken bottle automatically stopping valve, broken bottle washing, and foam automatically exhausting device.




  6, The whole automatic alcohol filling machine operation adopts advanced man-machine interface, PLC control, frequency conversion stepless speed regulation and other automatic control technology, with no bottle no open valves, no stamps; no cap no operation, and other security protection.

Technical parameter

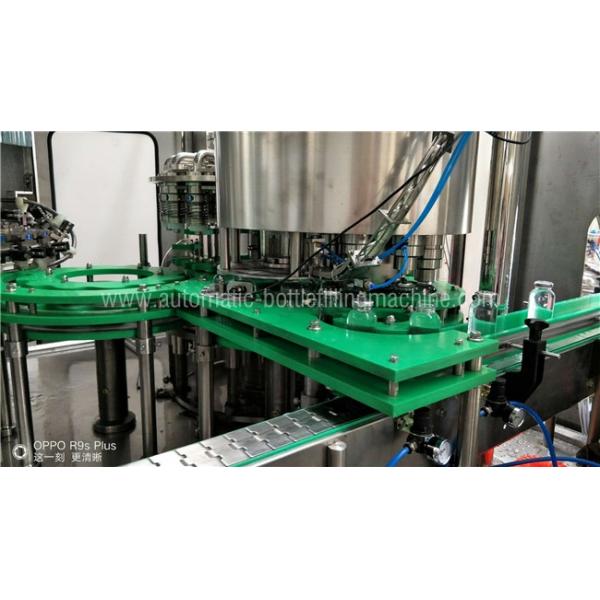

Machine show

Pls click the picture to watch the video.

We can supply complete line plants:

1. water treatment system;

2. beverage preparation machine;

3. filling machine;

4. labeling machine, package machine
