Soda Gas Water Filling And Capping Machine,Carbonated Drink
Bottling Line
Features:
This washing filling capping machine is mainly used for carbon dioxide drink, such as cola, soda water, soft drink,
sparkling water, energy drink, beer and so on. The machine design is shorten the time for the drink
material contact with outside, increase the sanitation condition
throughout economy benefit.
The available capacity is from 1000 bottles per hour to 24000BPH.
Technical Parameters |
| Model | DCGF12-12-5 | DCGF18-18-6 | DCGF24-24-8 | DCGF32-32-10 | DCGF40-40-12 |
| Capacity(500ml)(B/H) | 2000-3000 | 3000-5000 | 5000-7000 | 7000-10000 | 10000-15000 |
| Filling precision | <=+5(liquid level) |
| Filling pressure | <=0.4Mpa |
| Bottle height | 160-320mm |
| PET bottle specification | Bottle diameter 50-115mm,Height160-320mm |
| Suitable cap shape | Plastic screw cap or crown cap |
| Total power | 4.4 | 5.2 | 6.2 | 6.2 | 7.5 |
| Overall dimensions | 2250*1650*2250 | 2600*1965*2250 | 2980*2200*2250 | 3880*2200*2250 | 4000*2250*2500 |
| Weight(kg) | 2500 | 3500 | 4500 | 6000 | 7200 |
You also can customize the size according to your requirement,here
is only part of sample. |

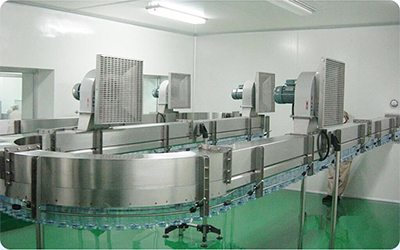

01 - Air Conveyor.
- Air conveyor is fixed on the floor, with fan installed on the
top.
- Air filter is positioned at every entrance of air fan, to prevent
dust blown into bottles.
- Bottles are held on the neck in the conveyor and transported into
filling machine by blowing power.
- All are made of stainless steel SUS 304 /316.
- Rack made by high quality carbon steel welded.
02 - Washing Parts.
- Into bottle way is air conveyor direct connection with bottle
dial.
- All 304/316 stainless steel rinse heads, water spray style inject
design, more save water consumption and more clean.
- 304/316 Stainless steel Gripper with plastic pad, ensure minimal
bottle crash during washing.
- 304/316 stainless steel washing pump make the machine more
durable.
03 - Filling Parts.
- 304/316 Stainless steel high precision filling nozzle
- Filling volume adjustable in fine rank, same liquid level after
filling
- All 304/316 stainless steel contact parts & liquid tank, fine
polish, no death corner, easy to clean
- 304/316 stainless steel filling pump
- Efficient spray nozzle rinse thoroughly and save water for
flushing
04 - Capping Parts.
- Place and capping system, electromagnetic capping heads, with
burden discharge function, make sure minimum bottle crash during
capping
- All 304/316 stainless steel construction
- No bottle no capping
- Automatic stop when lack of bottle
- Capping effect is stable and reliable, Defective rate ≤0.2%
We can provide complete line plants:
BENEFITS.
1 / Pack consistency and quality
2 / Gentle and precise infeed configuration
3 / Flexible handling of multiple SKUs
4 / Automatic pack and raw material changeovers
THE AFTER-SALE SERVICE OF KING MACHINE!
● After finish the production, we will debug the production line,
take photos, videos and send them to customers via mail or instant
tools
● After the commissioning, we will package the equipment by
standard export package for shipment.
● According to the customer's request, we can arrange our engineers
to customers' factory to do the installation and training.
● Engineers, sales managers and after-sales service manager will
form a after-sales team, online and off line, to follow the
customers' project.
5 / Heat, glue, carton and film optimisation
